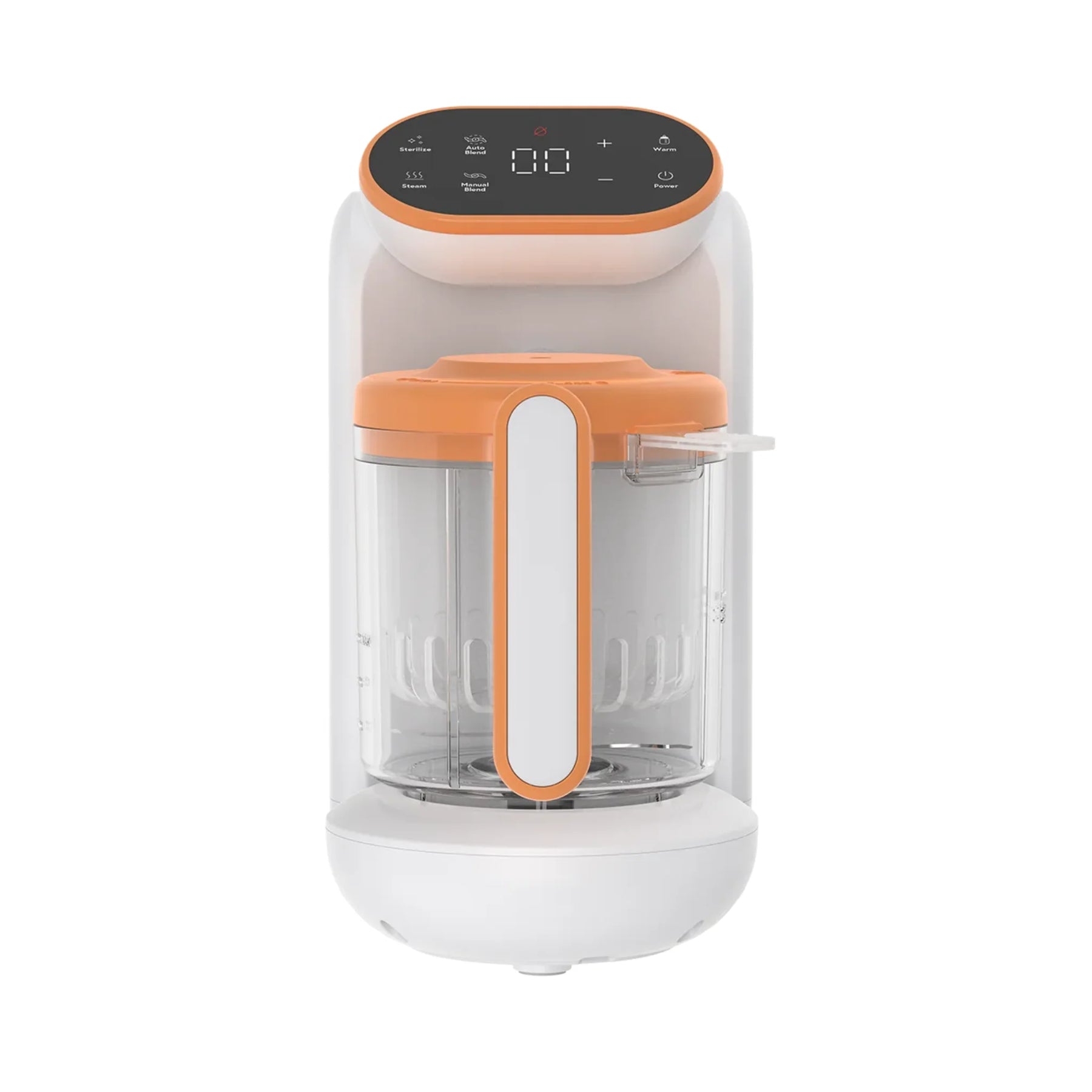

Quark | Quook 5-in-1 Baby Food Processor

Cleaning and maintaining Quook is designed to be convenient. Most components are dishwasher-safe for easy cleaning. However, certain parts, such as the motor base, require hand washing. It is recommended to refer to the product manual for detailed cleaning instructions to ensure proper maintenance and longevity of your device.

If the blending cup is not correctly locked into place, the screen will display the 'E1' error and prevent the device from operating for safety purposes. To fix the issue, make sure the blending cup is securely fixed to the main unit.

Step 1:Power off the unit and remove the stirring cup.

Step 2:Remove the lid and carefully remove the blade from the stirring cup as shown. Review the ‘Product Components’ section of this manual if you need a visual aid of components. To remove the
blade, you will need to disengage the blade from the blade holder at the base of the stirring up. The blade holder is rotated to the right to disengage and remove, and once clean, rotated left to install.

Note:The blade is sharp, so please be careful.

IMPORTANT:The blade gasket is the silicone material that is placed between blade and the stirring cup
to seal it, before you connect it to the blade holder. The tapered side of the blade gasket should be positioned downward on re-assembly.

We’re sanitisation cycle nerds as well. If you didn’t know - Quook can also be used to sterilise everyday items, or the stirring cup itself. A great way to prep for future use is to empty your puree for storage, add water the 'MAX CLEAN' line of the stirring cup, auto clean using the auto blend feature, dump out the excess water, and then use the Sterilise function to prep ahead for next use.

Alternatively, if you have bottle nipples, keys, or other small baby items which you would like sterilised, the Quook will set you straight with a quick 10 minute sterilisation cycle. Here’s how to use it:

Step 1: Ensure the water reservoir is filled to the ‘MAX’ fill line.

Step 2: Power on the unit and press the ’Sterilise’ button to start. You can initiate a sterilisation cycle on the empty stirring cup to clean before or after use. The unit will beep 5 times upon completion of the
steaming cycle.

Note: The ‘Sterilise’ function is versatile and designed to empower your everyday life. You can place small items which are safe for steam sterilisation (i.e. pacifiers, bottle nipples) into the stirring cup, and use the sterilise function to clean before or after use.

The Sterilisation function on the Quook is a game changer. It’s almost like we’re parents too, and got annoyed of having a steam steriliser on the counter, next to a food processor, a milk warmer and 3 other baby formula appliances which leave no room for a toaster or your beloved French Press coffee maker which looks so damn good on the counter and crafts your nectar of the gods each morning.

Step 1:Rinse any remaining purée from the cup, and fill the blending cup with water to the ‘MAX CLEAN’ fill line.

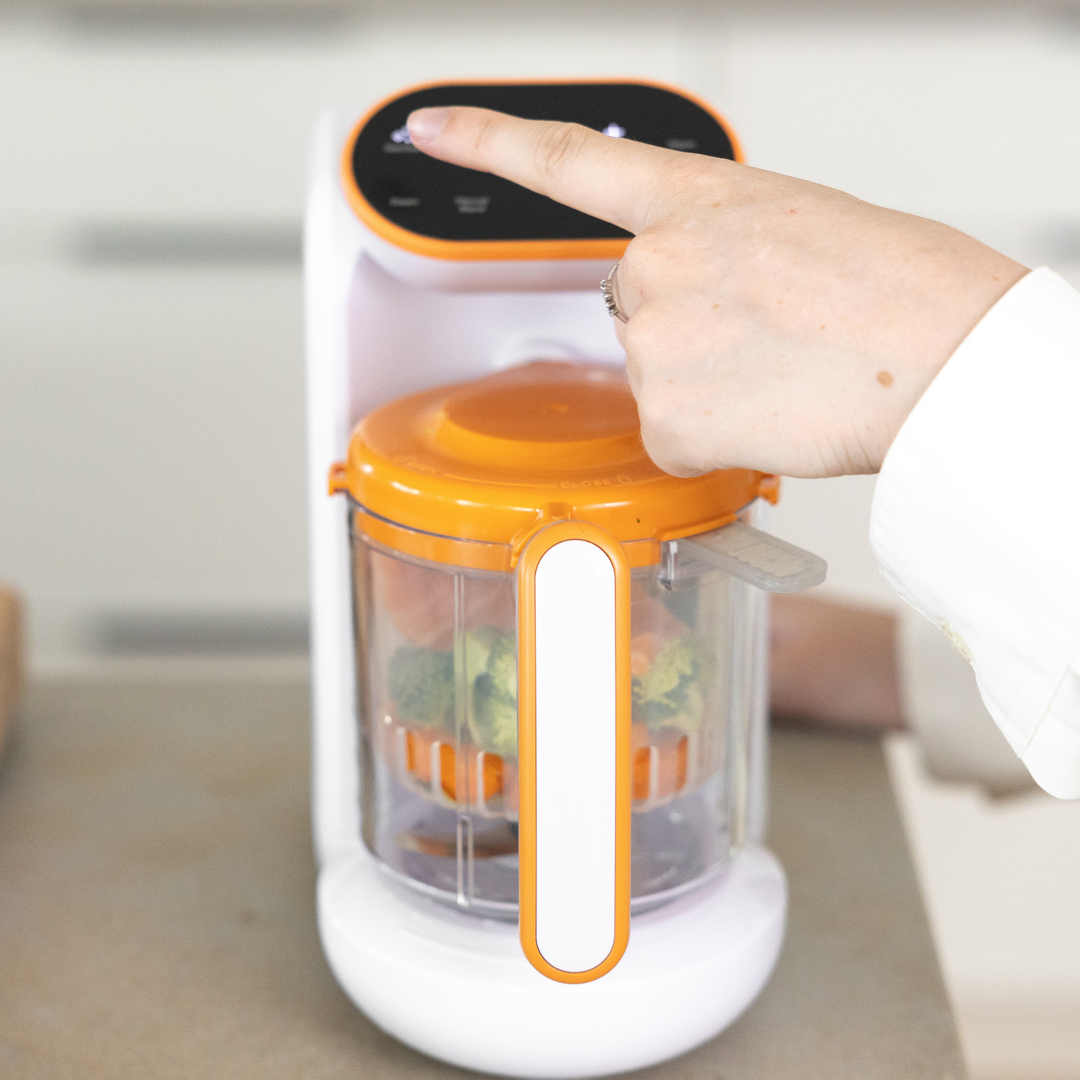

Step 2:Secure the spill-proof cover and lid onto the stirring cup and attach it to the unit. Power on the unit and press the ‘Auto Blend’ button.

Step 3:Drain the water and rinse the stirring cup, and run a ‘Sterilise’ cycle to disinfect the stirring cup.

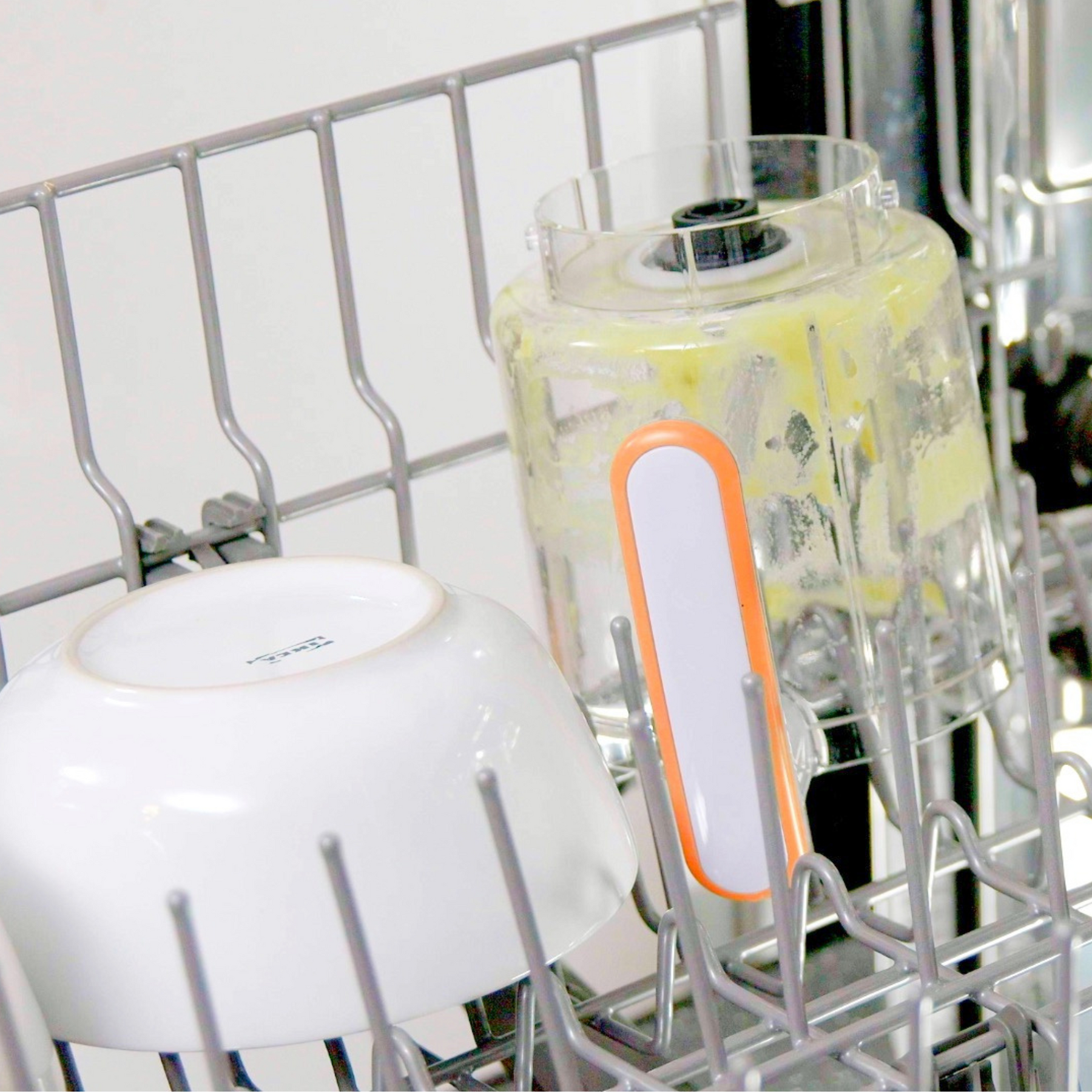

Note:If you prefer to use a dishwasher to clean your Quook components, the stirring cup and blade components are top rack dishwasher safe.
